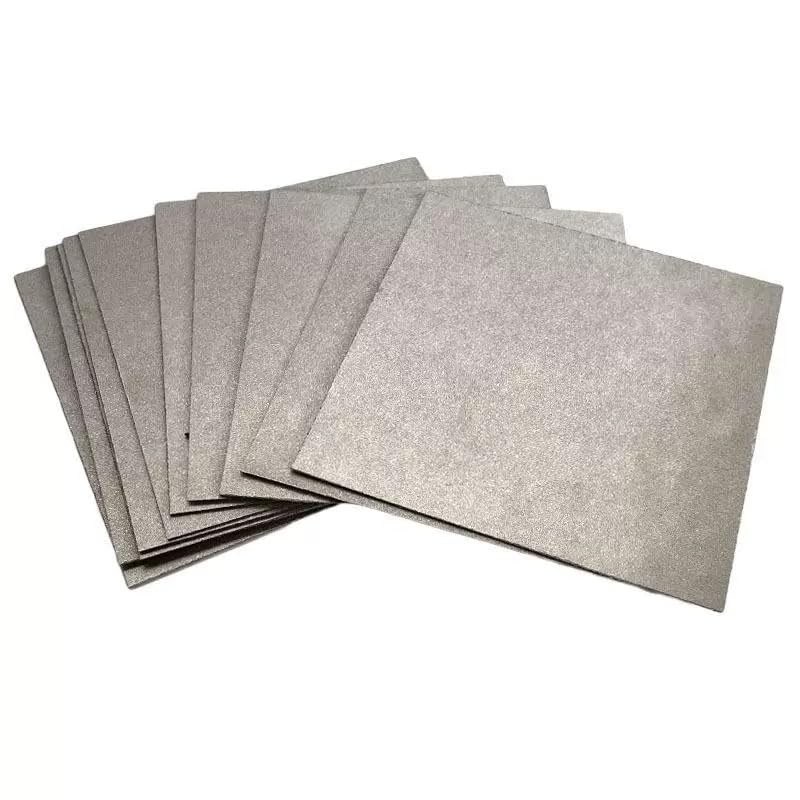

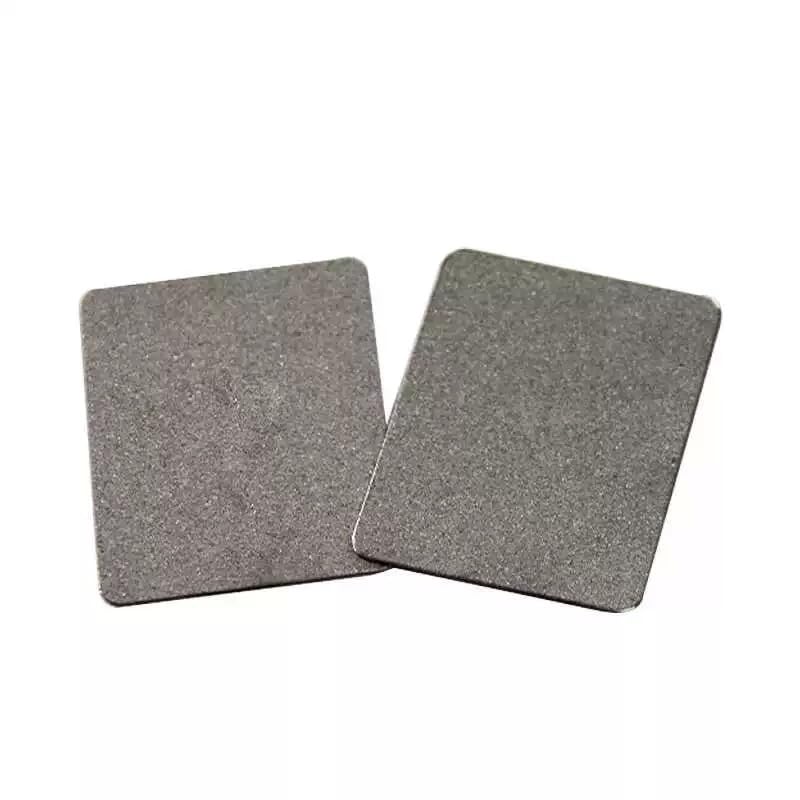

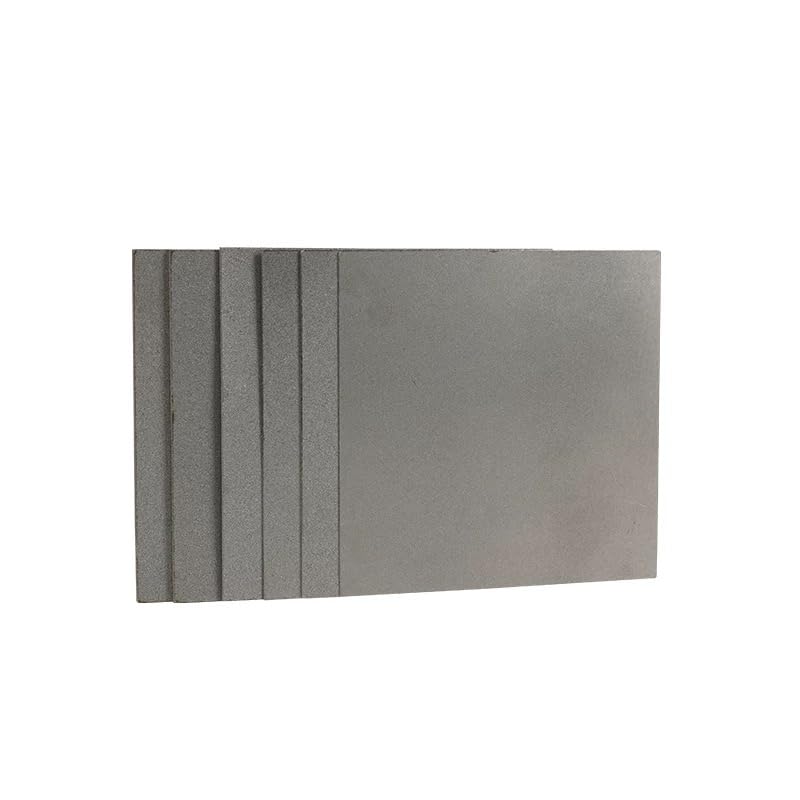

Multi-Application High Purity Ti Foam Titanium Metal Foam (50mm*50mm*3.0mm)

Sound absorption—The porous structure has a wide frequency of sound absorption. the sound absorption coefficient is also measured in 200−6300Hz, the first resonant frequency occurs at about 4000 Hz, and the sound absorption coefficient reaches up to 0.9. Electron wave shielding—Shields electron waves of around 90dB through a relatively thin thickness. Heat resistance—Can be used normally below 250℃. Thermal conductivity—Porosity samples with pore sizes ranging from 1 mm to 3 mm and sizes ranging from 87% to 89%, the thermal conductivity at room temperature is approximately 0.4~0.8 W/(m∙K). Chemical stability—High resistance to acid and alkali corrosion (pH2-12), and anti-oxidation performance. Filtration accuracy: 0.45um-100um Porosity： 28-50% Transmittance rate： 0.02-20M3cm/m2h.mmH2O Compressive strength： 0.5-1.5Mpa Temperature resistance： 280 ° C (wet state) Maximum working pressure range： 0.6Mpa Precision： 0.22 µm 0.45 µm 1 µm 3 µm 5 µm 10 µm 20 µm 30µm 50 µm 80 µm 100 µmSound absorption—The porous structure has a wide frequency of sound absorption. the sound absorption coefficient is also measured in 200−6300Hz, the first resonant frequency occurs at about 4000 Hz, and the sound absorption coefficient reaches up to 0.9. Electron wave shielding—Shields electron waves of around 90dB through a relatively thin thickness. Heat resistance—Can be used normally below 250℃. Thermal conductivity—Porosity samples with pore sizes ranging from 1 mm to 3 mm and sizes ranging from 87% to 89%, the thermal conductivity at room temperature is approximately 0.4~0.8 W/(m∙K). Chemical stability—High resistance to acid and alkali corrosion (pH2-12), and anti-oxidation performance. Filtration accuracy: 0.45um-100um Porosity： 28-50% Transmittance rate： 0.02-20M3cm/m2h.mmH2O Compressive strength： 0.5-1.5Mpa Temperature resistance： 280 ° C (wet state) Maximum working pressure range： 0.6Mpa Precision： 0.22 µm 0.45 µm 1 µm 3 µm 5 µm 10 µm 20 µm 30µm 50 µm 80 µm 100 µm

• Titanium foam is a low-density permeable material with high specific strength, high energy absorption, excellent corrosion resistance and biocompatibility. Unlike aluminum foams. Titanium foams cannot easily be produced in the liquid state, due to the high melting temperature and extreme contamination susceptibility of titanium.
• Due to its outstanding mechanical properties, low density and high chemical resistance, titanium foam is a very environmentally friendly and promising new material which has a wide range of functions, such as in battery and supercapacitor, medical area, filter material, aerospace area, etc.
• Titanium foam is a lightweight, porous metallic material with high specific strength, excellent corrosion resistance and biocompatibility. It is widely used in aerospace, biomedical implants, energy absorption and filtration systems.
